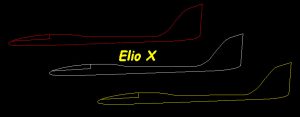

To become the Elio X

Note : This information is for a removable tip panels which is an Option I built into my personal Elio.

Some details will be different for the one piece wing builds.

Also for the opposite panel flip the tip panel plan and trace the outline and mark the rib and spar locations.

I the old days a light oil was used on the paper to show the lines thru

Find the most recent pictures at the bottom

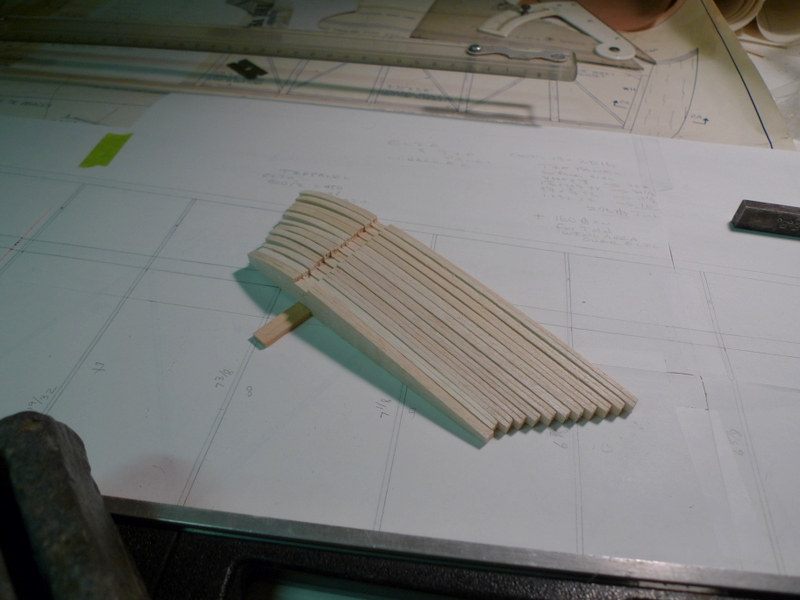

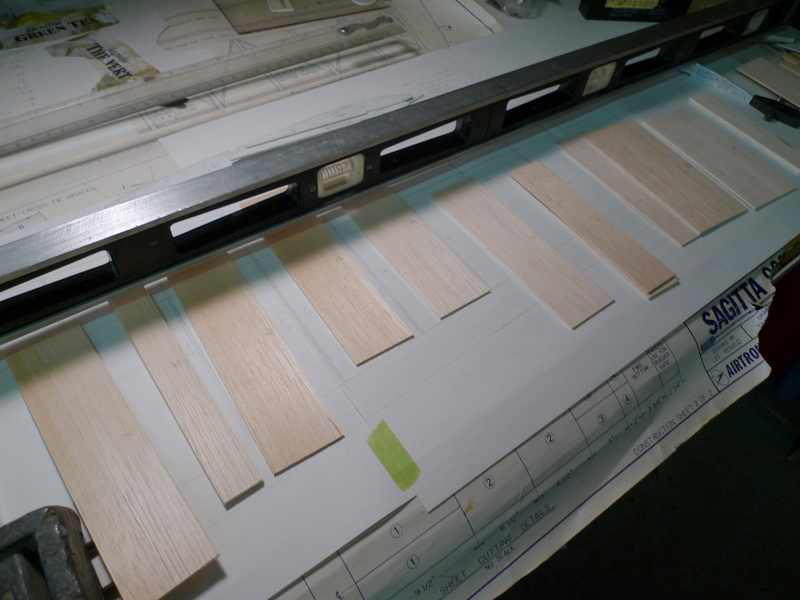

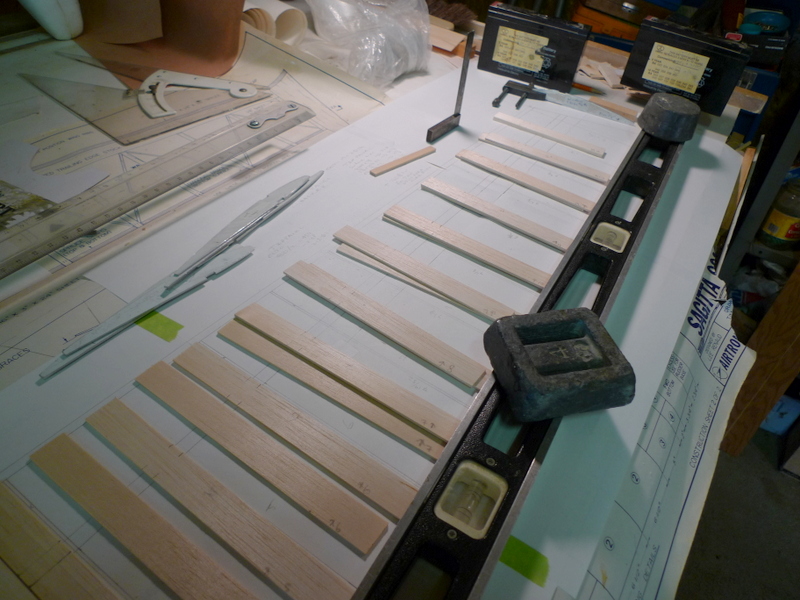

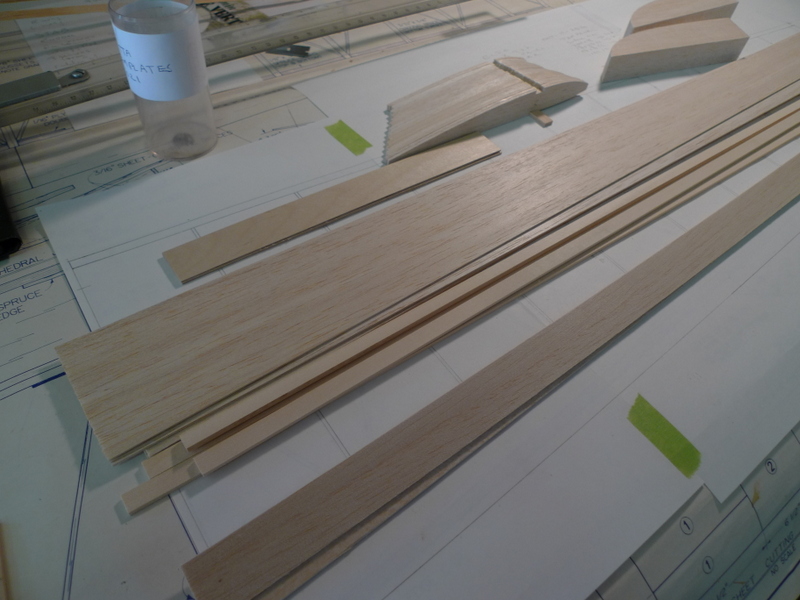

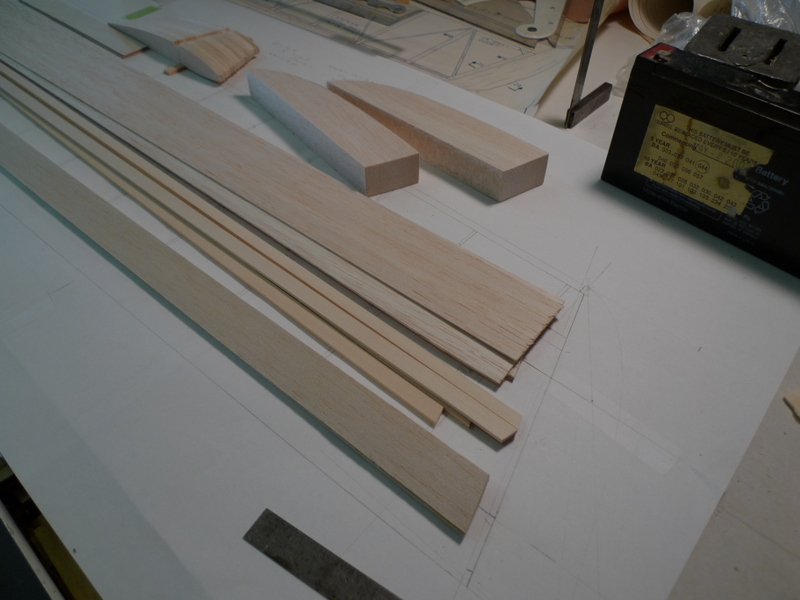

Tip panel extended by 10 inches and I needed a new rib set.

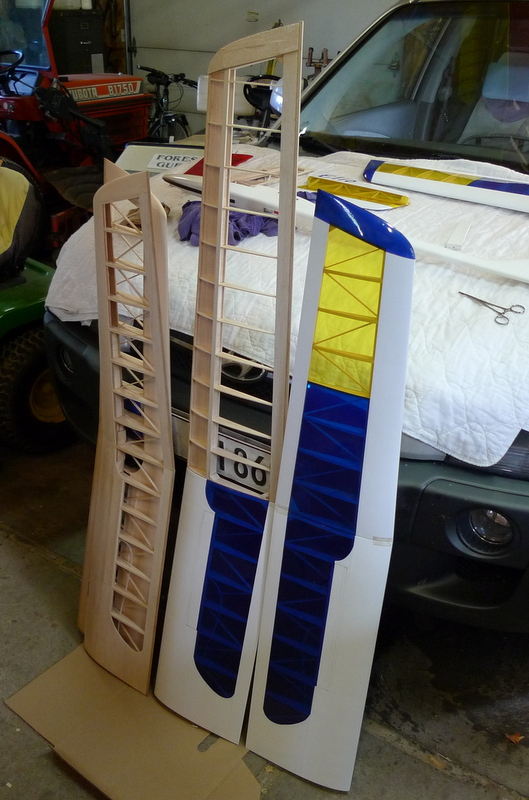

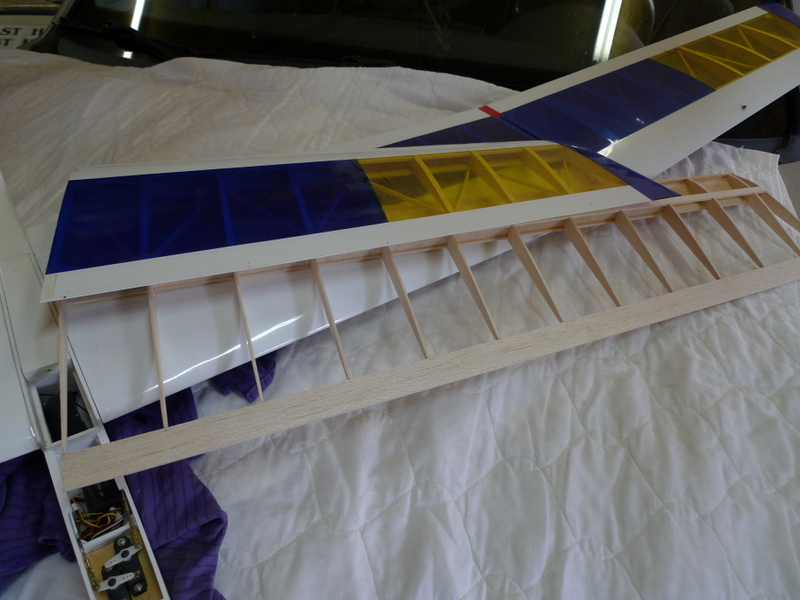

Elio X taking shape, and based on last years weather  I have another month of flying left.

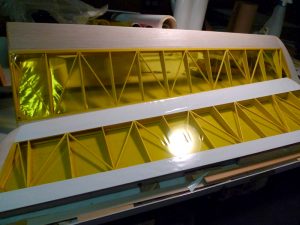

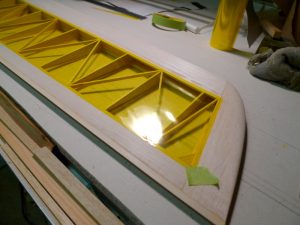

Perhaps I will get these tip panels built covered :):)

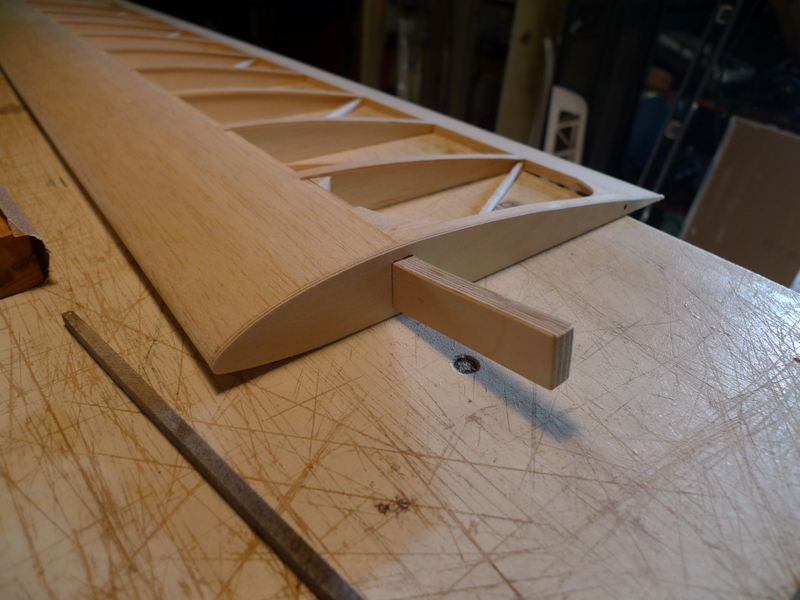

Tip panel joiner

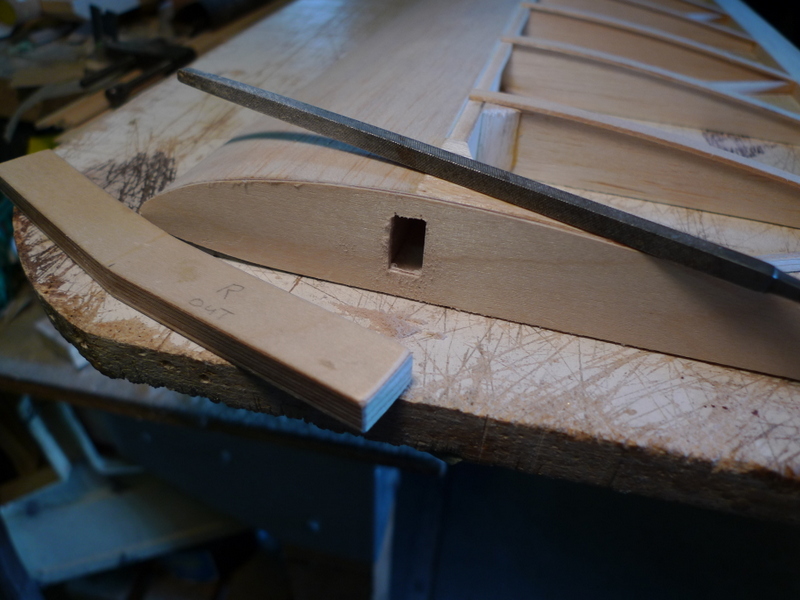

opening up the hole for the tip panel joiner in the plywood root rib

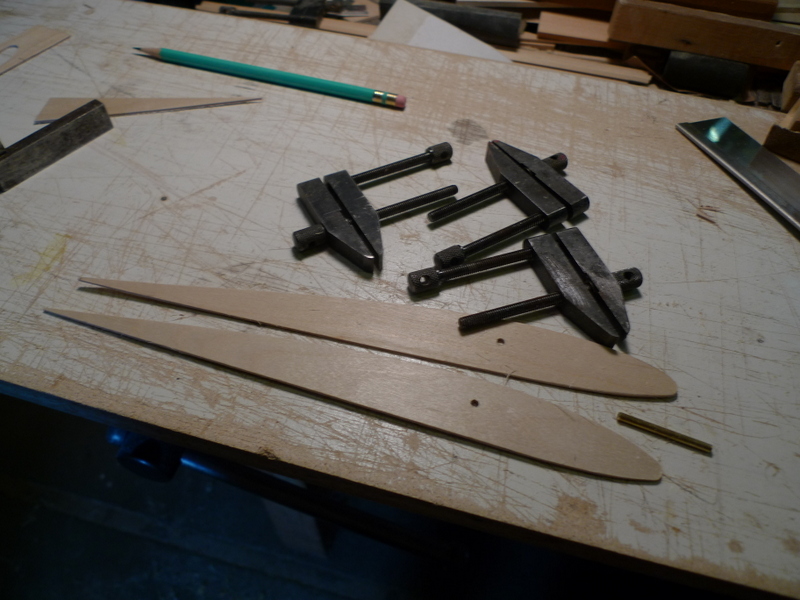

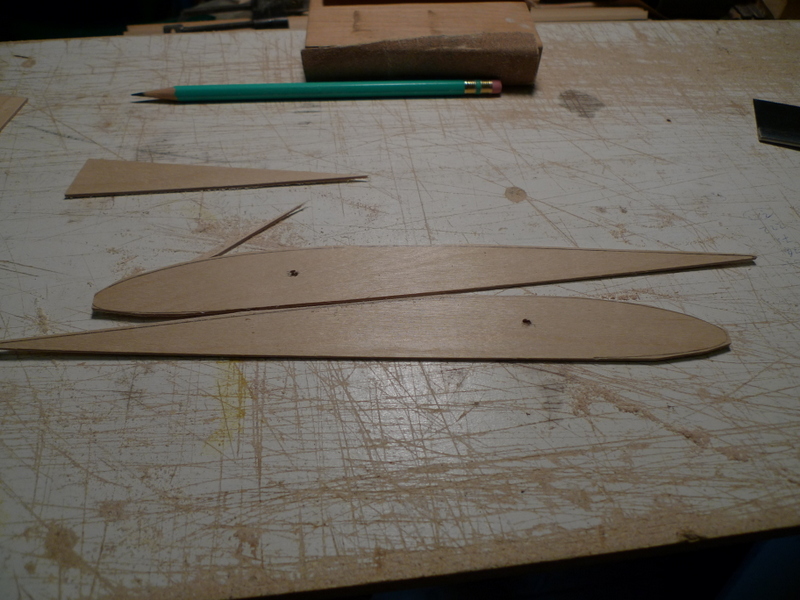

Tip root rib caps 1/16 plywood

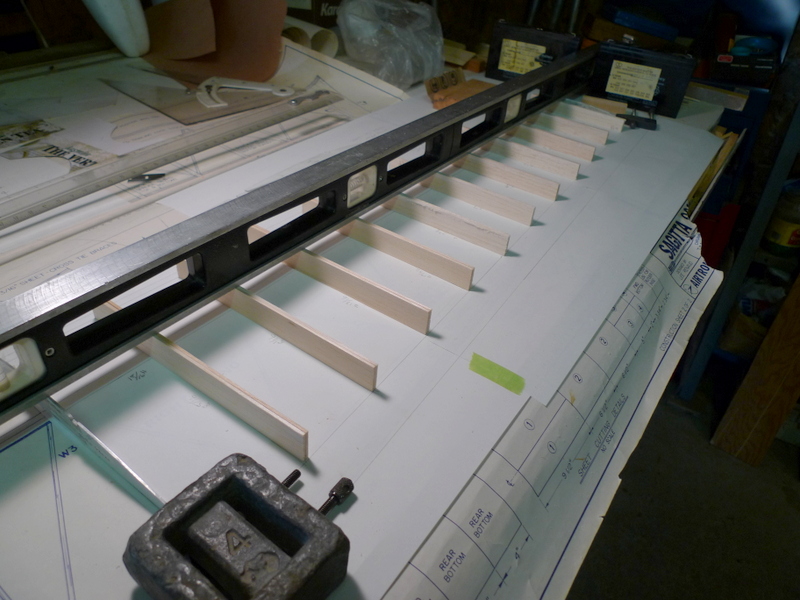

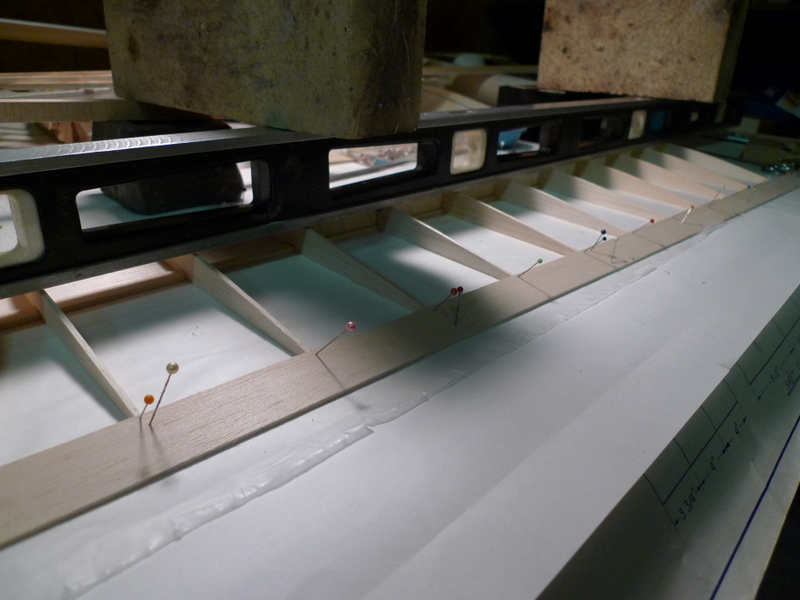

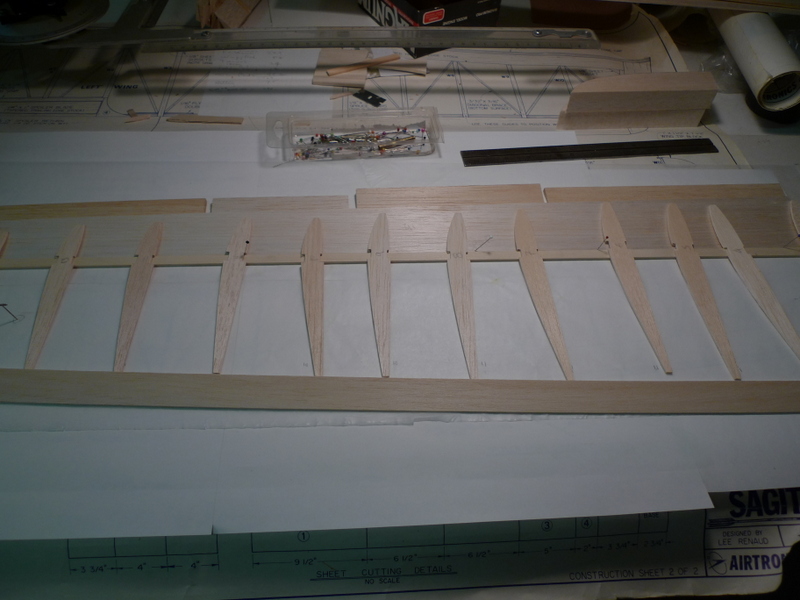

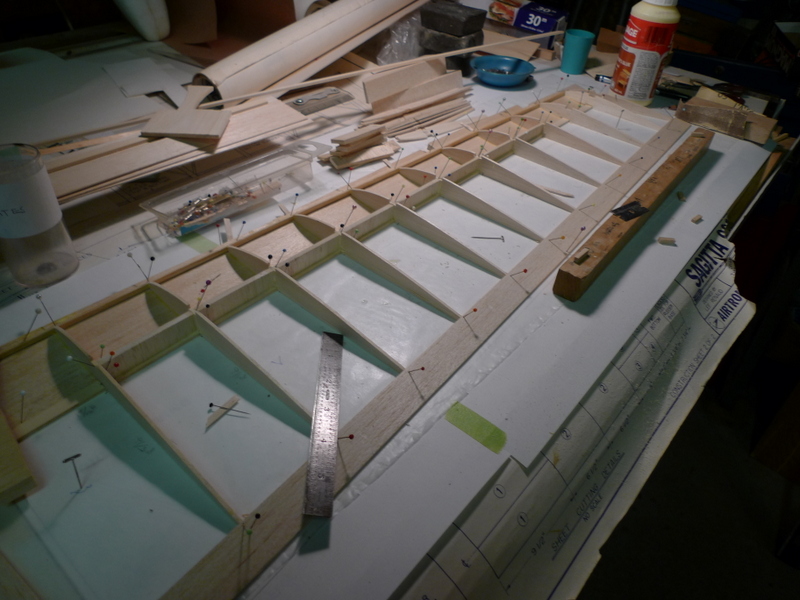

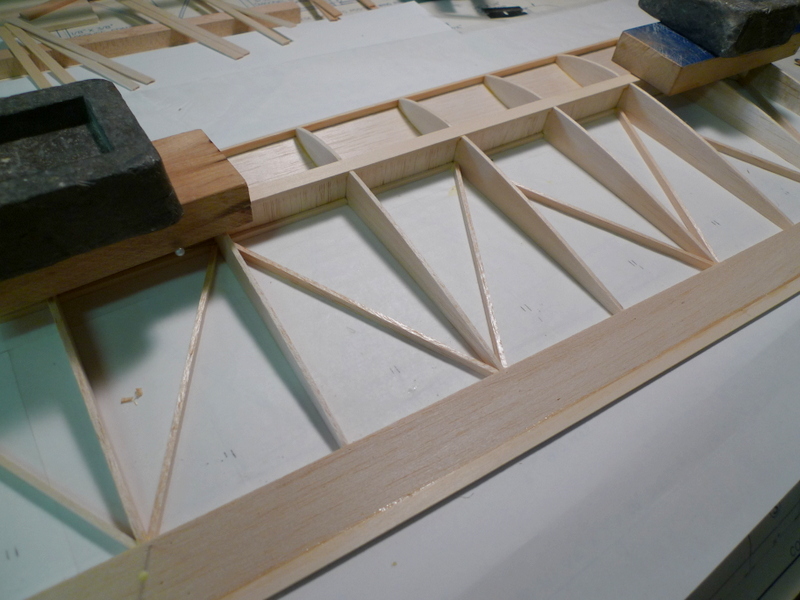

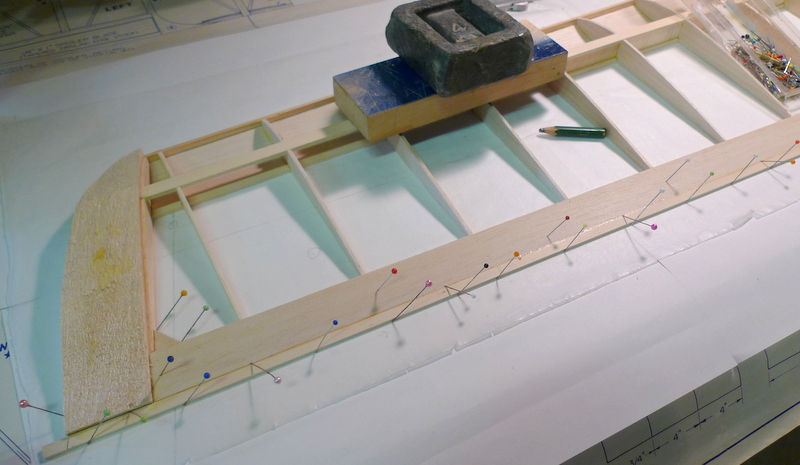

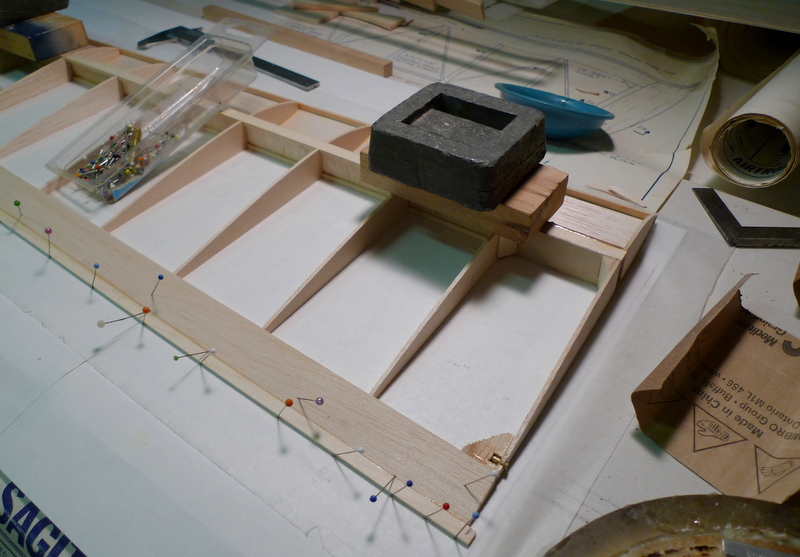

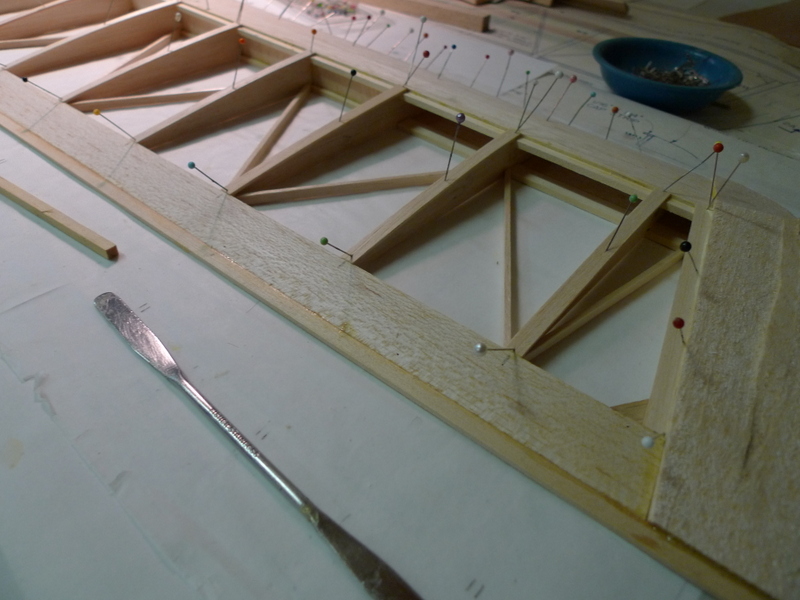

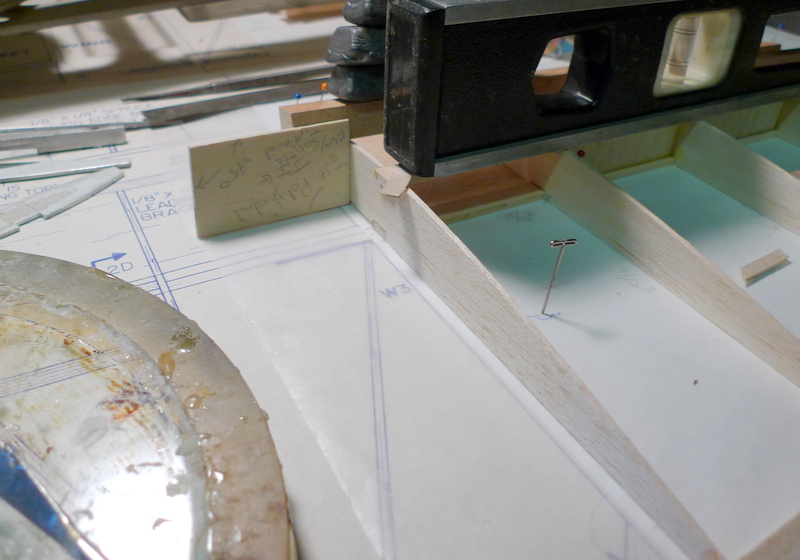

Rib caps in place, diagonals on lower side

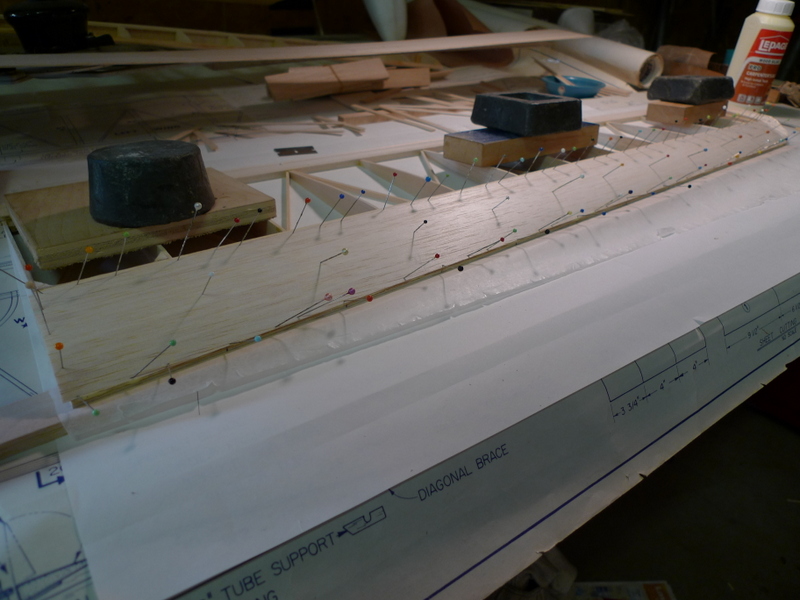

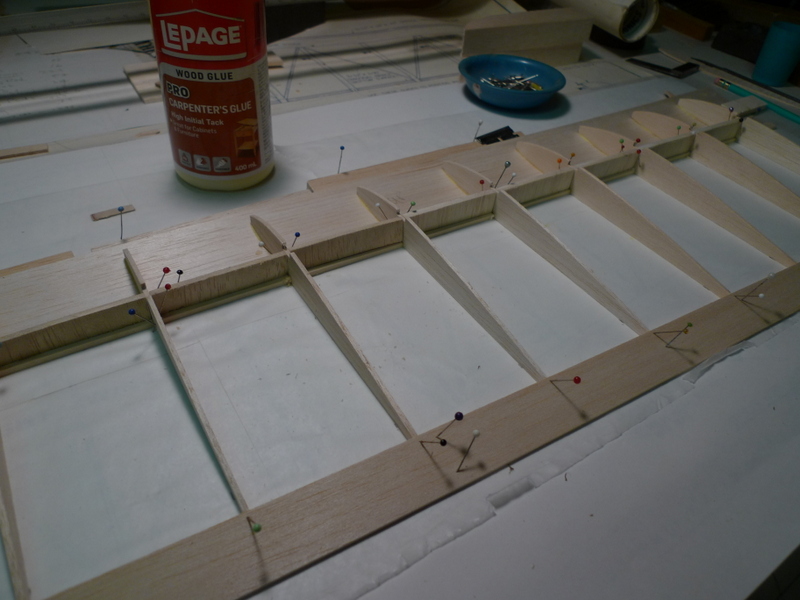

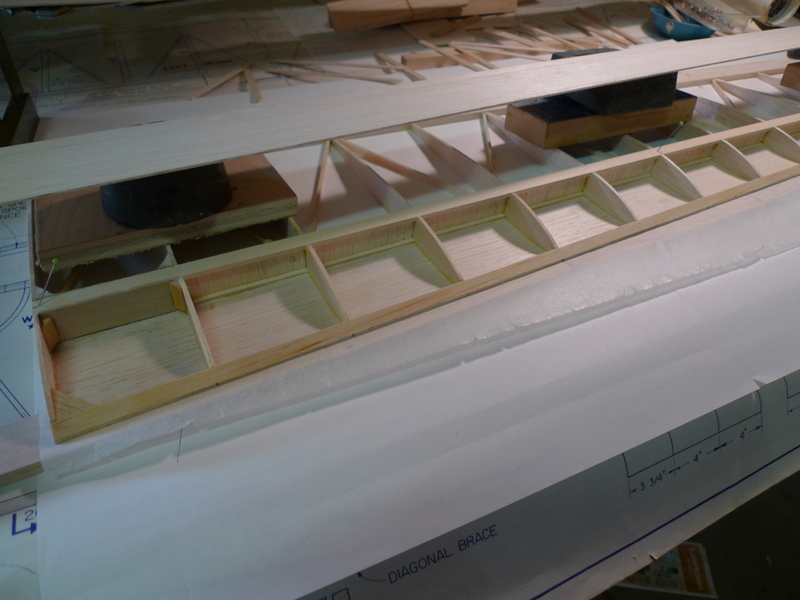

Prepping for addition of upper D Box sheeting
