Previous Invader IV Canopy Work

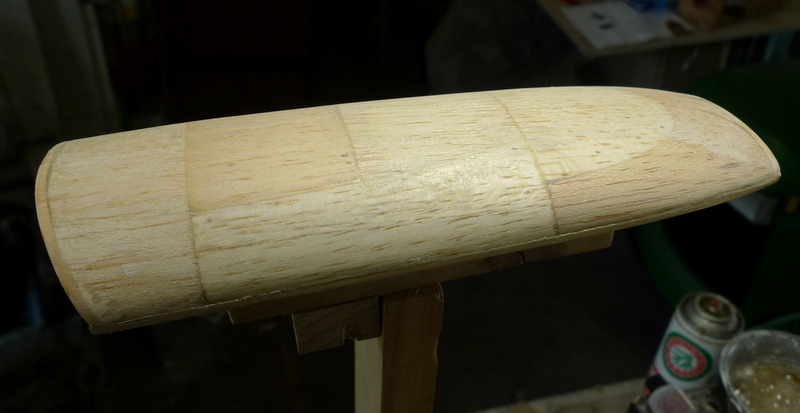

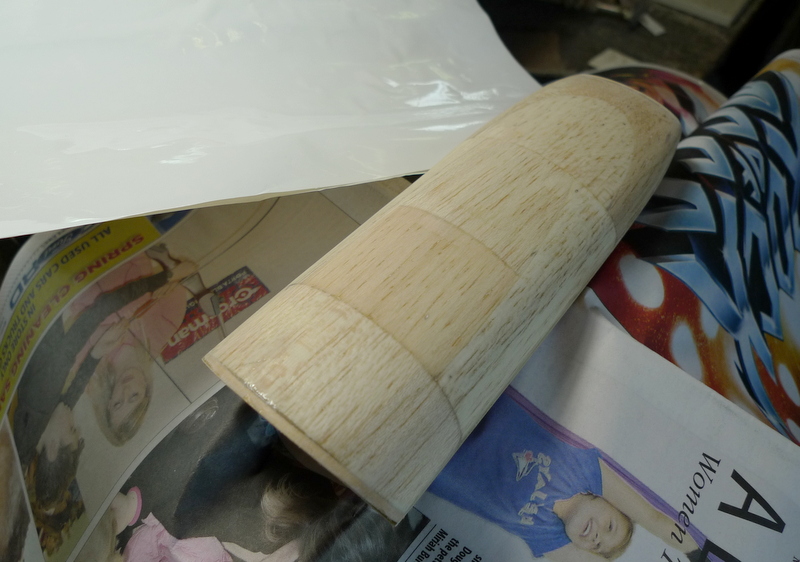

I had previously coated the Balsa plug with some varathane, and sanded it smooth. To extend it and make it a little larger I also added 1/8 inch ply, forward aft and the underside

P1190766 P1190767

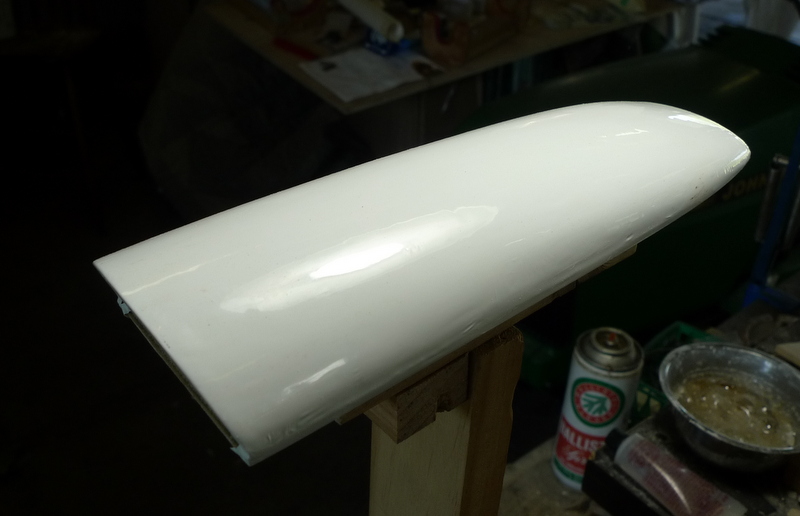

Some ultracote was added to give it as smooth a surface as possible

P1190768

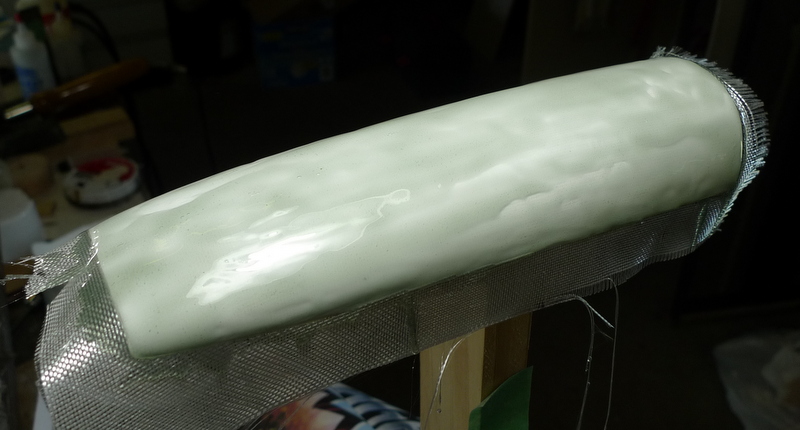

Blocks of wood and a stick make it easier to handle while I do the glassing. Prior to adding the 1st layer of cloth I gave the plug a few coats of clear carnauba wax

P1190769

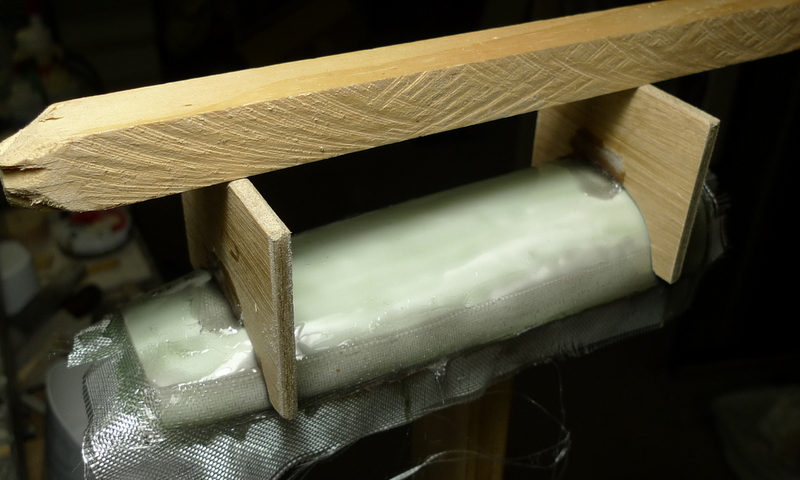

After the 1st layer was set I went around the edges with some heavier cloth strips and added a couple cradle supports

P1190773

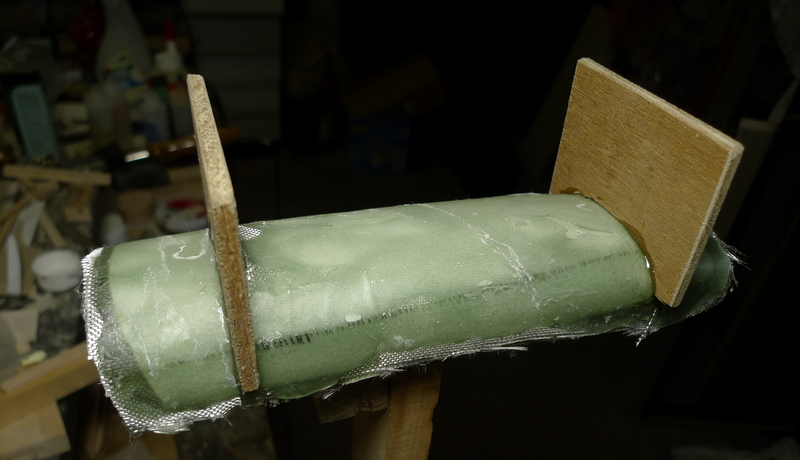

Next up heavier cloth all over, actually a couple layers

P1190775

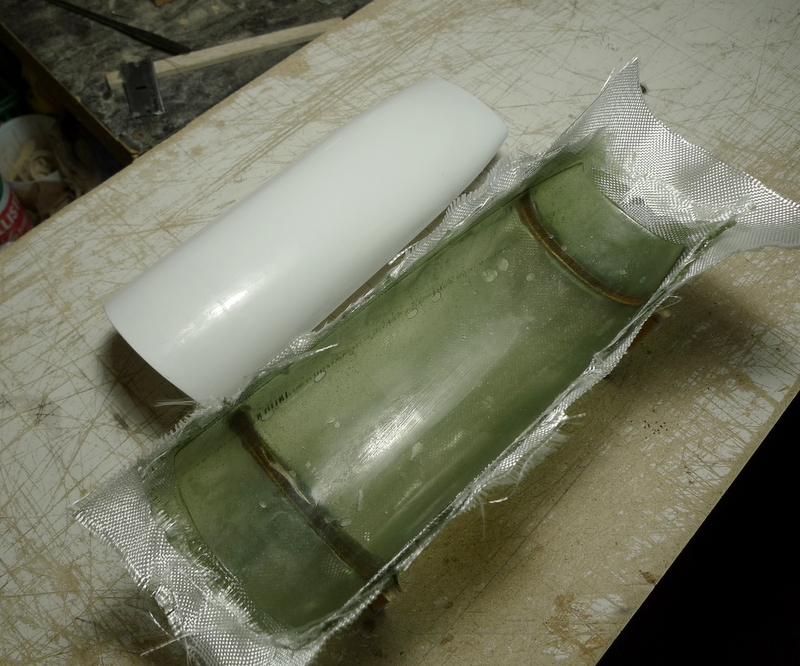

Out, released very easily, and then of to clean and trimming the edges

P1190776

Hope it works, will check the surface for marks etc, and clean up nicely.

Want a Canopy for your Invader IV  ?  :)

P1190777

Now the Fun Part a Canopy

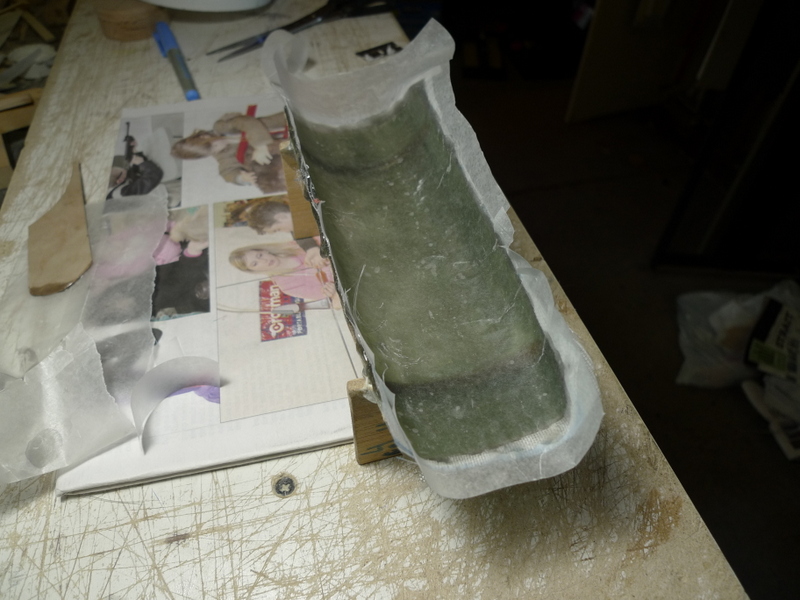

I added a couple layers of cloth, and a strip at each end

P1190778

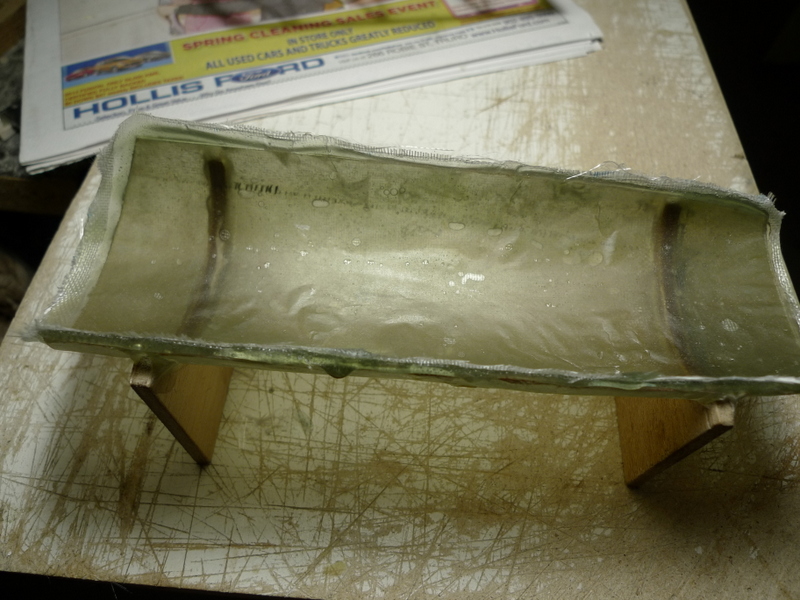

Then a piece of wax paper and pushed the air bubbles out

P1190780

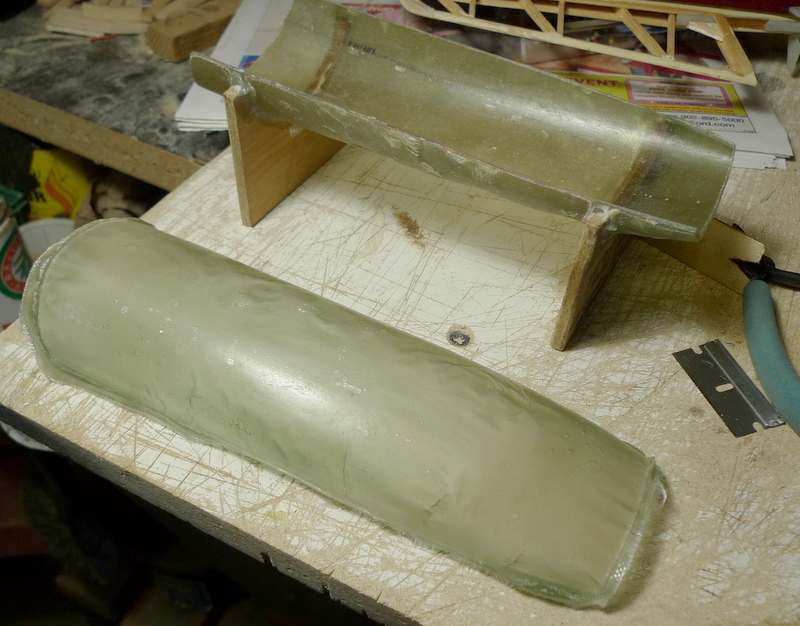

Some 12 hours later



P1190781

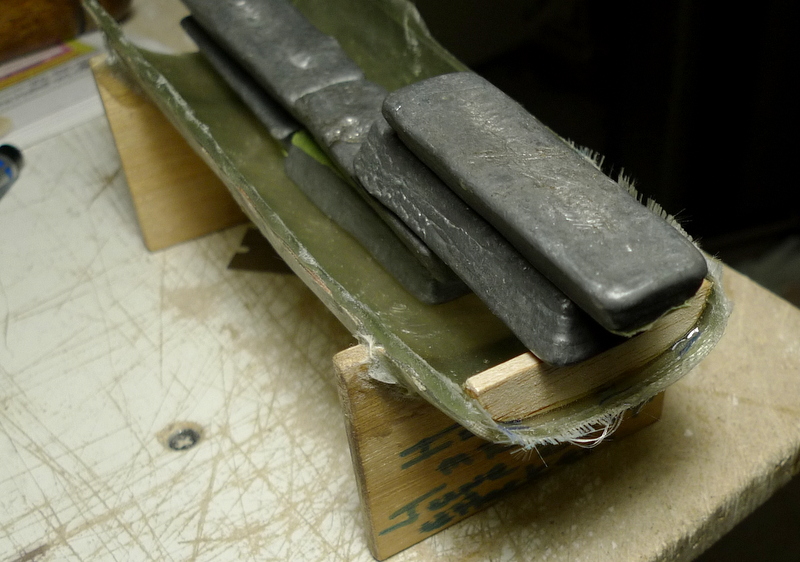

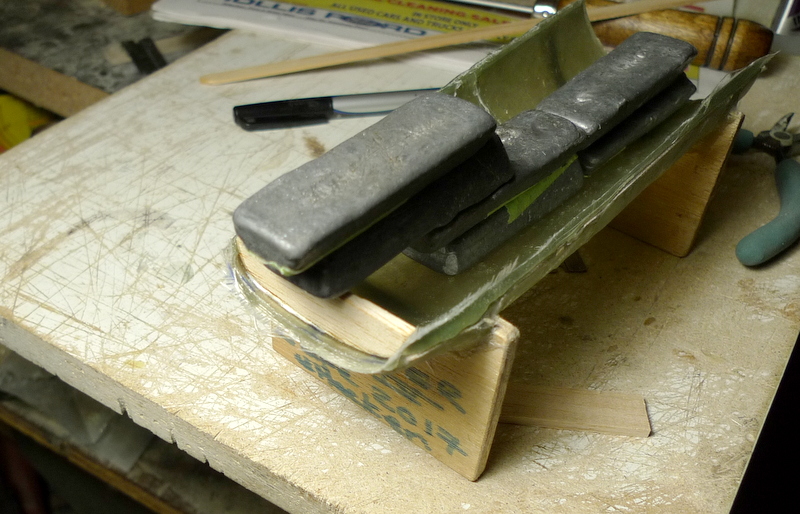

A piece of balsa at the forward end

P1190782 P1190783
